vistool cleanly separates what to plot from how it should look. Work through it in three quick moves:

  1. Initialize a visualizer with as_visualizer() to handle the computation and choose a theme,
  2. add layers that pick up colors automatically,
  3. plot with plot(), tweaking options as needed, and optionally call save().

NOTE: The built-in themes (viridis, plasma, grayscale) are tuned to look great out of the box, so you can skip extra styling and still land on a polished plot.

This keeps customization consistent across every visualization while respecting the theme precedence.

LaTeX support

plotly surfaces automatically render MathJax when labels contain LaTeX syntax. You can control the MathJax source globally via options(vistool.mathjax = “cdn”) (default), “local” to use a system installation, or a full URL for a self-hosted source. For ggplot2 figures, the latex2exp package must be installed.

Theme system overview

Theme precedence (highest to lowest)

  1. Layer-specific style: add_points(color = "red", size = 3)
  2. Plot theme override: plot(theme = list(palette = "plasma"))
  3. Instance theme: vis$set_theme(vistool_theme(...))
  4. Package default: options(vistool.theme = vistool_theme(...))

Creating and using themes

my_theme = vistool_theme(
  palette = "plasma",        # Color palette: "viridis", "plasma", "grayscale"
  text_size = 14,            # Base text size
  theme = "bw",              # ggplot2 theme: "minimal", "bw", "classic", etc.
  alpha = 0.7,               # Default transparency
  line_width = 1.5,          # Default line width
  point_size = 3,            # Default point size
  legend_position = "top",   # Legend position
  show_grid = TRUE,          # Show grid lines
  grid_color = "gray95",   # Grid color
  background = "white"     # Background color
)

obj = obj("TF_branin")
vis = as_visualizer(obj, type = "2d")

# setting the theme
vis$set_theme(my_theme)

# adding layers
vis$add_contours(color = "auto")

# override the theme for specific plots
vis$plot(theme = list(text_size = 12, alpha = 0.9))

Layer-specific customization

All add_*() methods support style parameters that override theme defaults (see the reference!). Below are common examples:

add_points()

vis$add_points(
  points,                   # Point data
  color = "auto",           # "auto" uses theme palette, or specify color
  size = NULL,              # Point size (NULL uses theme default)
  shape = 19,               # Point shape
  alpha = NULL,             # Transparency (NULL uses theme default)
  annotations = NULL,       # Text labels for points
  annotation_size = NULL,   # Size of annotations
  ordered = FALSE,          # Draw arrows between consecutive points
  arrow_color = NULL,       # Color of arrows
  arrow_size = 0.3          # Size of arrows
)

add_optimization_trace()

vis$add_optimization_trace(
  optimizer,                # Optimizer object with trace data
  line_color = NULL,        # Color of the trace line (NULL -> "auto" resolved at plot time)
  line_width = NULL,        # Width of trace line (NULL -> theme$line_width)
  line_type = "solid",      # Line type: "solid", "dashed", "dotted"
  npoints = NULL,           # Number of points to show from the trace (NULL -> all)
  npmax = NULL,             # Maximum number of points to show (post-processing cap)
  name = NULL,              # Name for the trace (legend)
  add_marker_at = 1,        # Iteration numbers where to add markers
  marker_size = 3,          # Size of markers
  marker_shape = 16,        # Marker shape (ggplot2 integer or plotly symbol)
  marker_color = NULL,      # Color of markers (NULL -> uses line color)
  show_start_end = TRUE,    # Highlight start/end points (2D only)
  alpha = NULL              # Alpha transparency (NULL -> theme$alpha)
)

add_annotation()

add_annotation() attaches text callouts to any visualizer. Supply absolute coordinates via x, y, and z (surface plots), or pass position = list(...) with values in [0, 1] for relative placement. The method honors the current theme, resolving color = "auto", default text size, and opacity automatically; you can still override them per annotation. Set latex = TRUE to typeset the label (requires latex2exp for ggplot2).

# Absolute placement in data space
vis$add_annotation(
  text = "Optimum",
  x = 0, y = 0,
  color = "auto",
  opacity = 0.8
)

# Relative placement in the plot window
vis$add_annotation(
  text = "${}\\nabla f = 0$",
  latex = TRUE,
  position = list(x = 0.85, y = 0.2, reference = "figure"),
  color = "auto"
)

Plot-level customization

The plot() method accepts theme overrides and functional parameters:

vis$plot(
  # Theme override (merged with instance theme)
  theme = list(
    palette = "grayscale",      # Override palette for this plot
    text_size = 16,             # Override text size
    alpha = 0.5,                # Override default alpha
    theme = "classic"           # Override ggplot2 theme
  ),

  show_title = TRUE,            # Show/hide title
  plot_title = "My Plot",       # Custom title
  plot_subtitle = "Subtitle",   # Add subtitle
  show_legend = TRUE,           # Show/hide legend
  legend_title = "Legend",      # Custom legend title
  x_lab = "X Variable",         # Custom axis labels
  y_lab = "Y Variable",
  z_lab = "Z Variable",         # For surface plots
  x_limits = c(-2, 2),          # Custom axis limits
  y_limits = c(-1, 1),
  z_limits = c(0, 100)          # For surface plots
)

Note that you can further customize the returned plot objects directly by adding manual layers. For some examples, see the Advanced visualization vignette.

Automatic color management

All visual elements support automatic color assignment using color = "auto":

  • Colors are automatically assigned from the effective theme palette
  • Each visualizer tracks its color index to ensure distinct colors for multiple layers
  • The color index resets on each plot() call
  • Manual colors override automatic assignment
# Example: Multiple traces with auto colors
vis = as_visualizer(obj("TF_branin"), type = "2d")
vis$set_theme(vistool_theme(palette = "plasma"))

vis$add_optimization_trace(optimizer1, line_color = "auto")  # Gets first color
vis$add_optimization_trace(optimizer2, line_color = "auto")  # Gets second color
vis$add_points(custom_points, color = "auto")                # Gets third color

# Plot and colors will be consistent with plasma palette
p = vis$plot()

Example: complete workflow

# 1. Create visualizer (computational setup only)
task = tsk("mtcars")$select(c("wt", "hp"))
learner = lrn("regr.lm")
vis = as_visualizer(task, learner = learner, n_points = 50, padding = 0.1)

# 2. Set instance theme
vis$set_theme(vistool_theme(
  palette = "plasma",
  text_size = 12,
  theme = "bw",
  alpha = 0.8
))

# 3. Add layers with automatic styling
vis$add_training_data(color = "auto")  # Uses theme palette
vis$add_boundary(color = "black")      # Manual override

# 4. Plot with theme override for this render only

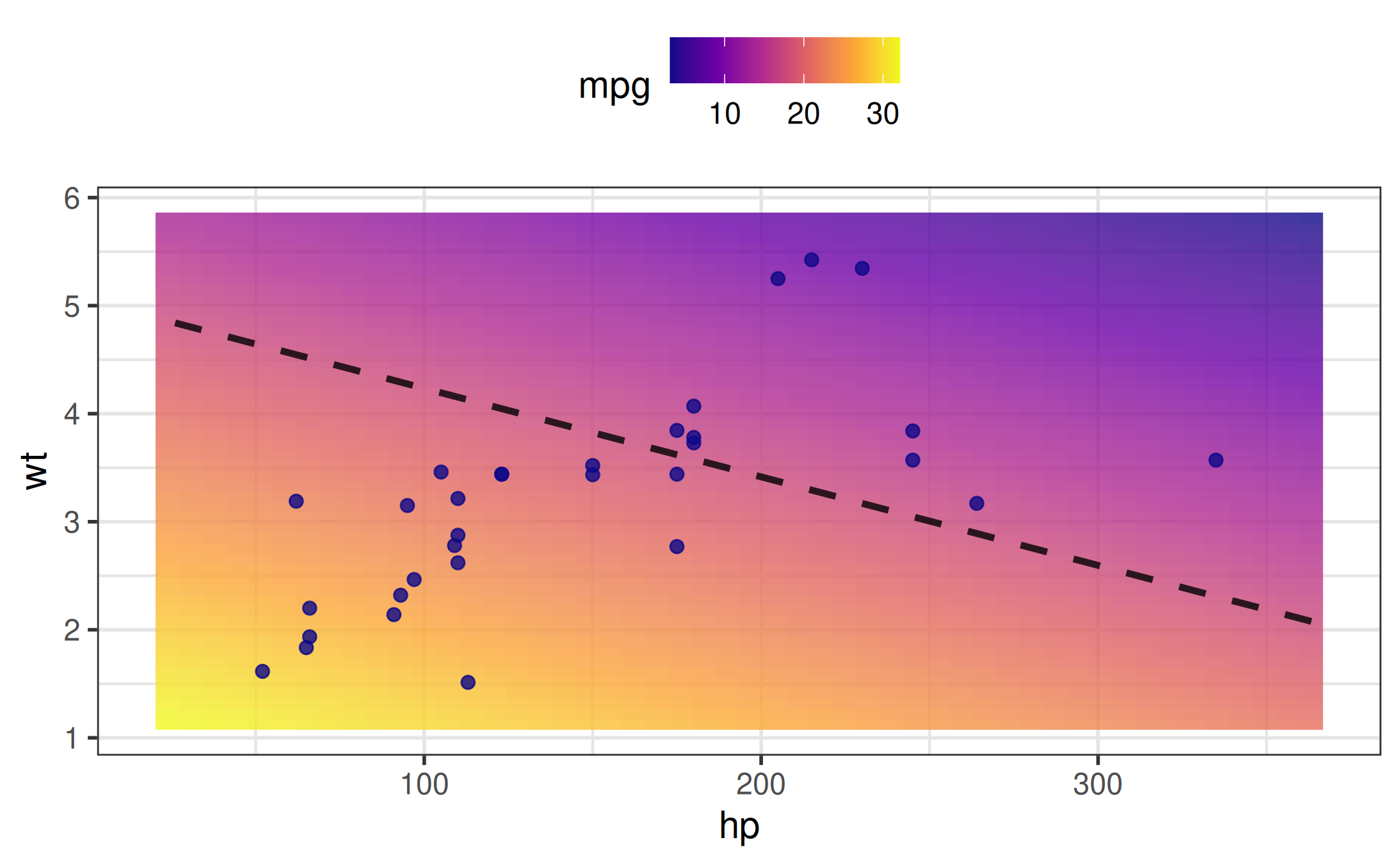

vis$plot(theme = list(text_size = 14, legend_position = "top"), show_title = FALSE)

# 5. Save uses the cached plot for efficiency
vis$save("my_plot.png", width = 8, height = 6)

Package-level defaults

Set global defaults that apply to all new visualizers:

# Set package default theme
options(vistool.theme = vistool_theme(
  palette = "plasma",
  text_size = 12,
  theme = "bw"
))

# All new visualizers will use this theme unless overridden
vis1 = as_visualizer(obj("TF_branin"))  # Uses plasma palette
vis2 = as_visualizer(obj("TF_gaussian1"))  # Also uses plasma palette

# Instance themes still override package defaults
vis1$set_theme(vistool_theme(palette = "grayscale"))  # Now uses grayscale
