The goal of vistool is to visualize optimization traces and aid in teaching optimization-related concepts.
Installation
You can install the development version of vistool from GitHub with:
# install.packages("pak")
pak::pak("slds-lmu/vistool")Please note that surface visualization features (plotly backend) rely on plotly which in turn relies on certain functionality provided by Python packages, accessed via reticulate.
Optional: Setup for Saving Plotly Plots
In particular, the $save() functionality for surface plots uses plotly::save_image() internally, which requires the kaleido Python package. The following instructions are provided by ?plotly::save_image and assume you do not have miniconda installed already:
install.packages('reticulate')
reticulate::install_miniconda()
reticulate::conda_install('r-reticulate', 'python-kaleido')
reticulate::conda_install('r-reticulate', 'plotly', channel = 'plotly')
reticulate::use_miniconda('r-reticulate')Example
This example shows how to visualize the prediction surface of an SVM on the pima task included in mlr3:
# Create an example task, add missing data imputation and select 2 features
task = tsk("pima")
task = po("imputemean")$train(list(task))[[1]]
task$select(c("insulin", "mass"))
# Select example learner
learner = lrn("classif.svm", predict_type = "prob")

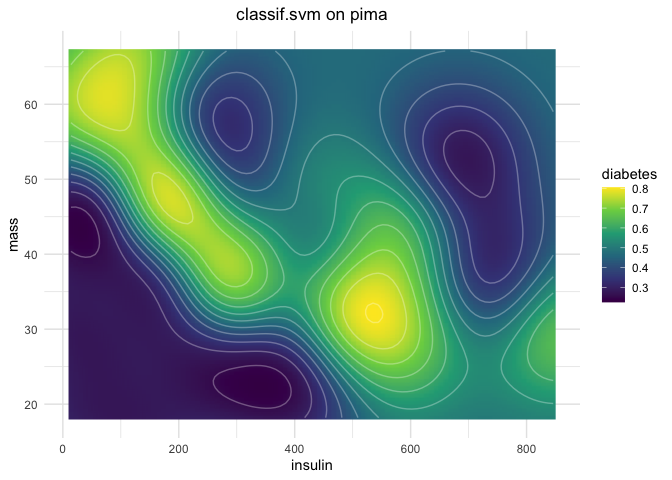

# Create 2D ggplot2 visualization
vis_2d = as_visualizer(task, learner = learner)
vis_2d$plot()
For interactive exploration, you can create surface visualizations with plotly:
# Create surface visualization for interactive plotly surface plot
vis_surface = as_visualizer(task, learner = learner, type = "surface")
# Define a 3D scene
vis_surface$set_scene(x = 1.4, y = 1.4, z = 1.4)
# View interactively
vis_surface$plot()
Save static version as png:
# only works if Python kaleido package is installed
# see installation instructions above for setting up plotly save functionality
vis_surface$save("man/figures/demo_1.png", width = 500, height = 500)Contributing
For anyone interested in contributing to vistool, please see the Developer Reference.
